Model |
CHA005 |
CHA010 |
CHA015 |
CHA020 |
CHA030 |
CHA050 |
CHA100 |
CHA200 |
|
|
Capacity (ton) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
|
|
Standard Lift (m) |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
|
|
Running Test Load (kN) |
7.5 |
15 |
22.5 |
30 |
45 |
75 |
150 |
250 |
|
|
Headroom(Drawn close up) Hmin (mm) |
240 |
270 |
347 |
380 |
470 |
600 |
700 |
1000 |
|
|
Effort required to lift max. load (N) |
221 |
304 |
343 |
314 |
343 |
381 |
392 |
392 |
|
|
No. of Falls of Load Chain |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
8 |
|
|
Load Chain Diameter (mm) |
6 |
6 |
8 |
6 |
8 |
10 |
10 |
10 |
|
|
Dimensions (mm) |
A |
120 |
142 |
178 |
142 |
178 |
210 |
358 |
580 |
|
B |
108 |
122 |
139 |
122 |
139 |
162 |
162 |
189 |
|
|
C |
24 |
28 |
34 |
34 |
38 |
48 |
64 |
82 |
|
|
D |
120 |
142 |
178 |
142 |
178 |
210 |
210 |
210 |
|
|
Net Weight (kg) |
8 |
10 |
16 |
14 |
24 |
36 |
68 |
155 |
|
|
Extra Weight per Meter Extra Lift (kg) |
1.7 |
1.7 |
2.3 |
2.5 |
3.7 |
5.3 |
9.7 |
19.4 |
|

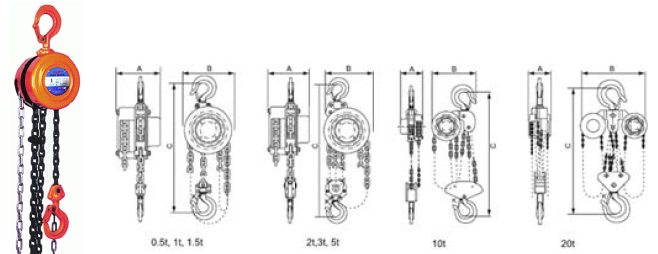

CHAIN HOIST A Type(economy Type)
