CHAIN HOIST CH-C TYPE

CHAIN HOIST CH-C TYPE
Product Description



  • Robust all steel construction, capacities from 500 kgs up to 20 tons.
  • All rotating components mounted on roller of ball bearings to reduce friction and increase efficiency.
  • Fully enclosed automatic load brake with asbestos free friction discs.
  • Fully enclosed stamped steel housing allows also outdoor use.
  • The drop forged suspension and load hooks that yield under overload instead of breaking are made from non-ageing, high tensile steel. The hooks are fitted with robust safety latches and are free to rotate 360 degrees.
  • Two stage reduction gear. Hardened gears and pinions are roller bearing supported, thus increasing efficiency
  • Hardened load sheave with four precision machined chain pockets. Roller bearings for smooth operation and low wear
  • Hand chain cover and slots accurately guide the hand chain
  • Two guide rollers and one chain stripper ensure accurate alignment of the load chain over the load sheave.
  • G-80 zinc plated RUD chain from Germany or FEC chain from Japan  available upon request.
  • Overload protection device is available upon request, the device can be fitted at a later date without problem.
  • TOOLIFT chain hoist is factory tested with overload. Test certificate is available with serial number and  EC declaration of conformity.



Model

CHC005

CHC010

CHC015

CHC020

CHC020D

CHC030

CHC050

CHC100

CHC200

Capacity (ton)

0.5

1

1.5

2

2

3

5

10

20

Standard lift (m)

2.5

2.5

2.5

3

3

3

3

3

3

Running test load (Kn)

7.5

15

22.5

30

30

45

75

150

250

Effort required to lift max. load (N)

221

304

343

410

314

343

414

414

828

Headroom(Drawn close up)              Hmin (mm)

255

306

368

368

444

486

616

750

1000

Number of chain strands

1

1

1

1

2

2

2

4

8

Load chain diameter (mm)

6

6

8

8

6

8

10

10

10

Hook opening (mm)

30

34

38

41

41

48

52

64

85

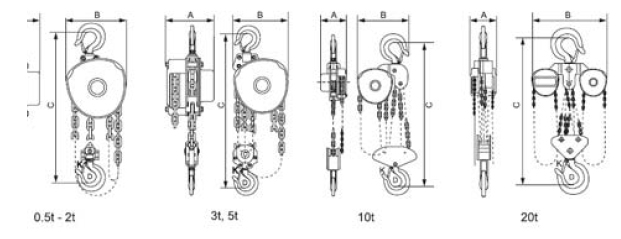

Dimensions (mm)

A

113

126

141

141

126

141

163

163

191

B

125

147

183

183

147

183

215

404.5

595

C

255

306

368

368

444

486

616

750

1000

Net weight (kg)

8.5

11

18

18

15

27

42

83

193

Extra weight per meter extra lift (kg)

1.7

1.7

2.3

2.3

2.5

3.7

5.3

9.7

19.4
