· Thick, pressed steel gear and hand wheel covers which are resistant to external shock and able to work under extreme and arduous conditions.
· Fully enclosed self-activating load brake with large asbestos-free friction discs for a long, trouble free life.
· Durable, heat-treated, compact and convenient hooks that swivel 360 degrees.
· Top and bottom hooks are drop-forged and are fracture-resistant.
When overloaded they will open gradually as a safety indicator,
Rather than reaching ultimate breaking strength and dropping the load, possibly causing injury or death.
· Double pawl mechanism for reliable fail-safe braking.
· Safety latches are fitted to top and bottom hooks as standard.
· Load chain guide mechanism and chain stripper to facilitate smooth movement and trouble-free operation.
· Chain stopper to prevent failure due to excessive lowering.
· World-renowned ultra-strong electroplated load chain to resist wear and corrosion.
· Overload protection device available upon request.
|
|
G025 |
G005 |
G100 |
G150 |
G200 |
G300 |
G300D |
G500 |
G750 |
G1000 |
G1500 |
G2000 |
G2500 |
|
|
Capacity (ton) |
0.25 |
0.5 |
1 |
1.5 |
2 |
3 |
3 |
5 |
7.5 |
10 |
15 |
20 |
25 |
|
|
Standard Lift (m) |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Running Test Load ( Kn) |
3.75 |
7.5 |
15 |
22.5 |
30 |
45 |
45 |
75 |
112.5 |
150 |
225 |
250 |
312.5 |
|
|
Effort Required to Lift Max. Load (N) |
235 |
240 |
250 |
265 |
335 |
372 |
290 |
360 |
368 |
382 |
378 |
382 |
387 |
|
|
Headroom(Drawn close up) Hmin (mm) |
280 |
345 |
376 |
442 |
470 |
548 |
565 |
688 |
690 |
765 |
900 |
950 |
950 |
|
|
No. of Falls of Load Chain |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
3 |
4 |
6 |
8 |
10 |
|
|
Load Chain (mm) |
4x12 |
5x15 |
6x18 |
7x21 |
8x24 |
10x30 |
7x21 |
10x30 |
10x30 |
10x30 |
10x30 |
10x30 |
10x30 |
|
|

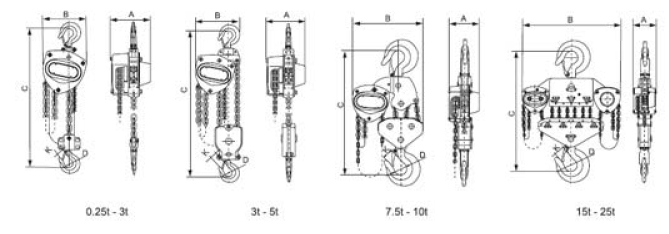

Dimensions (mm) |
A |
114 |
132 |
151 |
173 |
175 |
205 |
176 |
189 |
189 |
189 |
189 |
189 |
200 |
|
B |
121 |
148 |
172 |
196 |
210 |
255 |
230 |
280 |
433 |
463 |
776 |
900 |
970 |
|
|
C |
280 |
345 |
376 |
442 |
470 |
548 |
565 |
688 |
690 |
765 |
900 |
950 |
980 |
|
|
D |
31 |
35 |
40 |
45 |
50 |
55 |
55 |
65 |
67 |
85 |
95 |
106 |
106 |
|
|
K |
21 |
23 |
27 |
33 |
35 |
39 |
39 |
45 |
47 |
54 |
70 |
80 |
82 |
|
|
Net Weight (kg) |
6.2 |
11 |
12.5 |
17.8 |
19.5 |
35 |
29 |
41.3 |
62 |
78.5 |
135 |
190 |
215 |
|
CHAIN HOIST CH-G TYPE
