Model |
CHH005 |
CHH010 |
CHH015 |
CHH020 |
CHH030 |
CHH050 |
CHH100 |
CHH200 |
CHH300 |
|
|
Capacity (ton) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
30 |
|
|
Standard Lift (m) |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
|
|
Proof Load ( Kn) |
7.35 |
14.7 |
22.1 |
29.4 |
44.1 |
73.5 |
147 |
245 |
367.5 |
|
|
Effort Required to Lift Max. Load (N) |
262 |
304 |
395 |
330 |
402 |
415 |
428 |
428x2 |
442x2 |
|
|
Headroom(Drawn close up) Hmin (mm) |
280 |
345 |
376 |
442 |
470 |
548 |
565 |
688 |
690 |
|
|
No. of Falls of Load Chain |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
8 |
10 |
|
|
Load Chain (mm) |
5x15 |
6x18 |
8x24 |
8x24 |
8x24 |
10x30 |
10x30 |
10x30 |
10x30 |
|
|

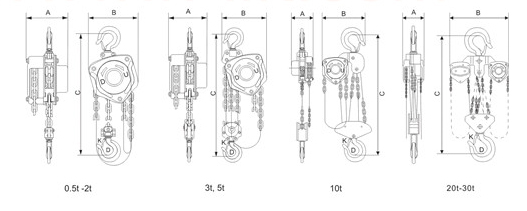

Dimensions (mm) |
A |
124 |
137 |
143 |
140 |
143 |
173 |
173 |
195 |
398 |
|
B |
135 |
160 |
195 |
170 |
195 |
255 |
395 |
650 |
710 |
|
|
C |
288 |
334 |
415 |
459 |
536 |
660 |
738 |
1002 |
1050 |
|
|
D |
35 |
40 |
45 |
48 |
55 |
65 |
80 |
105 |
105 |
|
|
K |
20 |
25 |
35 |
35 |
36 |
46 |
55 |
80 |
82 |
|
|
Net Weight (kg) |
7 |
10.5 |
15.5 |
17 |
23 |
39 |
69 |
162 |
237 |
|
Remark: Hoist with the lift in other length are also available.
Chain Hoist CH-H type
