The chain block mechanism and gears are enclosed in a robust all steel compact shell.
- The load chain is made of wear resistance, alloy steel Grade T80, black oxidized finish, heat treated and calibrated.
- Zinc plated hand chain as standard.
- Weather protected automatic Weston brake mechanism incorporating brake pawls for added safety.
- Top and bottom hooks swivel and come complete with safety cast latches.
- Bottom hook includes thrust bearing for greater load mobilty.
- Fully forged hooks are fitted with safety latches as standard.
- Traceability of each chain block is by means of an individual serial number, which is stamped on the identification side plate.
- 'ID' plates are stainless steel to avoid dangerous sparking (optional).
- Overload protection device available upon request.
- Complies with EC Council Directive 2006/42/EC Machinery, ASME B30.16, AS 1418.2.
|
Model |
CHX005 |
CHX010 |
CHX016 |
CHX020 |
CHX032S |
CHX032 |
CHX050 |
CHX100 |
CHX200 |
CHX300 |
|
|
Capacity (t) |
0.5 |
1 |
1.6 |
2 |
3.2 |
3.2 |
5 |
10 |
20 |
30 |
|
|
Standard Lift (m) |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Proof Load (kN) |
7.35 |
14.7 |
23.5 |
29.4 |
47 |
47 |
73.5 |
147 |
245 |
367.5 |
|
|
Effort Required to Lift Rated Load (N) |
210 |
260 |
265 |
272 |
380 |
280 |
358 |
370 |
370x2 |
390x2 |
|
|
No. of Falls of Load Chain |
1 |
2 |
4 |
8 |
12 |
||||||
|
Load Chain (mm) |
6x18 |
8x24 |
10x30 |
8x24 |
10x30 |
||||||
|

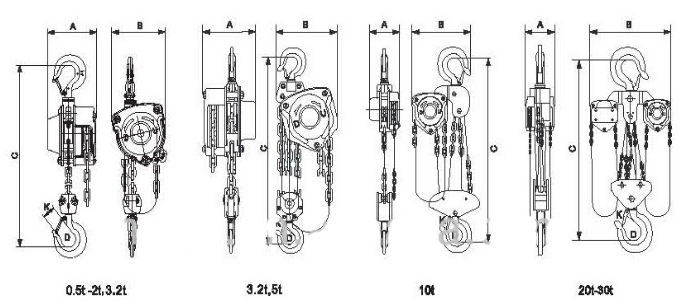

Dimensions(mm) |
A |
126.5 |
143 |
148 |
152 |
181 |
156 |
181 |
181 |
192 |
330 |
|
B |
136 |
156 |
182 |
198 |
266 |
214 |
266 |
365 |
630 |
670 |
|
|
C |
270 |
330 |
399 |
414 |
621 |
465 |
636 |
798 |
890 |
1000 |
|
|
D |
36 |
40 |
52 |
52 |
60 |
60 |
68 |
85 |
106 |
106 |
|
|
K |
25.5 |
28 |
38 |
38 |
50 |
42 |
50 |
57 |
84 |
84 |
|
Chain Pulley Block CH-X type
