Model |
CHK005 |
CHK010 |
CHK015 |
CHK020 |
CHK030 |
CHK050 |
CHK75 |
CHK100 |
CHK200 |
CHK300 |
|
|
Capacity (ton) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
7.5 |
10 |
20 |
30 |
|
|
Standard lift (m) |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Proof test load (Kn) |
7.35 |
14.7 |
22.1 |
29.4 |
44.1 |
73.5 |
110 |
147 |
245 |
367.5 |
|
|
Effort required to lift max. load (N) |
165 |
239 |
267 |
407 |
300 |
459.5 |
474 |
490 |
490X2 |
490X2 |
|
|
No. of Fall of Load Chain |
1 |
1 |
1 |
1 |
2 |
2 |
3 |
4 |
8 |
12 |
|
|
Load chain diameter (mm) |
5x15 |
6x18 |
7.1x21 |
8x24 |
7.1x21 |
9x27 |
9x27 |
9x27 |
9x27 |
10x30 |
|
|

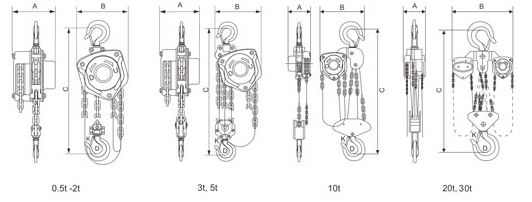

Dimensions (mm) |
A |
128 |
138.5 |
161 |
161 |
161 |
176 |
176 |
190 |
209 |
312 |
|
B |
122 |
148 |
175 |
175 |
232 |
258 |
329 |
384 |
625 |
691 |
|
|
C |
29 |
345 |
410 |
431 |
414 |
600 |
770 |
798 |
890 |
1380 |
|
|
D |
35 |
40 |
45 |
52 |
55 |
68 |
68 |
85 |
110 |
110 |
|
|
K |
22 |
26 |
29 |
35 |
39 |
43 |
43 |
58 |
85 |
85 |
|
|
Net weight (kg) |
8.5 |
11 |
16 |
18.5 |
15.4 |
37 |
62.5 |
79.5 |
163.3 |
220 |
|
|
Extra weight per meter extra lift (kg) |
1.4 |
1.6 |
1.9 |
2.2 |
3 |
4.4 |
6.1 |
7.9 |
19 |
27.7 |
|
CHAIN HOIST CH-K TYPE
