LEVER HOIST, LH-D TYPE

LEVER HOIST, LH-D TYPE
Product Description



Model

LHD075

LHD150

LHD300

LHD600

LHD900

Capacity (tons)

0.75

1.5

3

6

9

Standard lift (m)

1.5

1.5

1.5

1.5

1.5

Running test load  (Kn)

11.0

22.1

44.1

88.2

132.3

Minimum distance between hooks (mm)

320

380

480

600

700

Effort required to lift max. load (N)

140

220

320

340

360

No. of falls of load chain

1

1

1

2

3

Load chain diameter (mm)

6

8

10

10

10

Length of lever handles (mm)

280

410

410

410

410

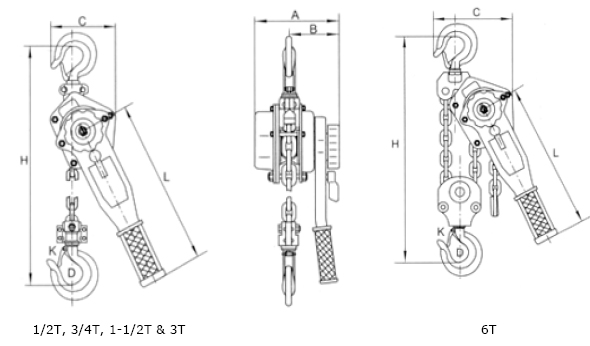

Dimensions(mm)

A

145

175

203

203

203

B

86

100

118

118

118

C

122

130

150

205

316

D

30

36

40

50

58

L

280

410

410

410

410

Net weight (kg)

7.5

11.5

21

31.5

47

Extra weight per meter extra lift (kg)

0.8

1.4

2.2

4.4

6.6
