Item No. |
1121 |
1122 |
1123 |
1124 |
1125 |
1126 |
|
|
Capacity |
kg |
250 |
500 |
750 |
1500 |
2500 |
5000 |
|
standard lift |
m |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Running test load |
kN |
3.75 |
7.5 |
11.25 |
12.5 |
37.5 |
75 |
|
Effort required to lift max.load? N(Kg) |
260(26) |
260(26) |
220(22) |
240(24) |
330(33) |
330(33) |
|
|
Diameter of load chain |
4.0*12 |
4.0*12 |
5.0*15 |
7.1*21.2 |
9*27 |
9*27 |
|
|

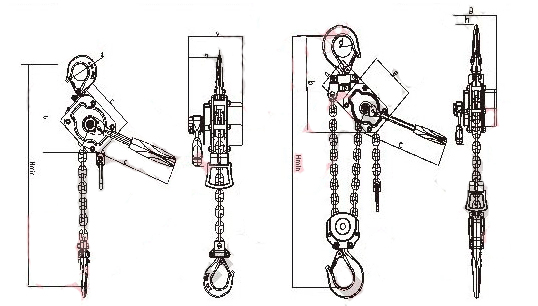

Dimensions? (mm) |
a |
86 |
95 |
121 |
139 |
173 |
173 |
|
b |
155 |
178 |
204 |
235 |
286 |
342 |
|
|
c |
170 |
170 |
240 |
240 |
335 |
335 |
|
|
d |
30 |
35 |
30 |
42 |
52 |
68 |
|
|
e |
79 |
87 |
112 |
133 |
162 |
167 |
|
|
H min |
245 |
285 |
335 |
365 |
448 |
615 |
|
|
g |
97 |
117 |
124 |
159 |
178 |
178 |
|
|
h |
77 |
80 |
84 |
90 |
97 |
97 |
|
Lever hoist Hsh-dc type
