Model |
LHA075 |
LHA150 |
LHA300 |
LHA600 |
LHA900 |
|
|
Capacity (tons) |
0.75 |
1.5 |
3 |
6 |
9 |
|
|
Standard lift (m) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
Running test load (Kn) |
11.0 |
22.1 |
44.1 |
88.2 |
132.3 |
|
|
Headroom(drawm close up) Hmin (mm) |
325 |
380 |
480 |
620 |
700 |
|
|
Effort required to lift max. load (N) |
140 |
220 |
320 |
340 |
360 |
|
|
No. of falls of load chain |
1 |
1 |
1 |
2 |
3 |
|
|
Load chain (mm) |
6X18 |
8X24 |
10X30 |
10X30 |
10X30 |
|
|
Length of lever handles (mm) |
280 |
410 |
410 |
410 |
410 |
|
|

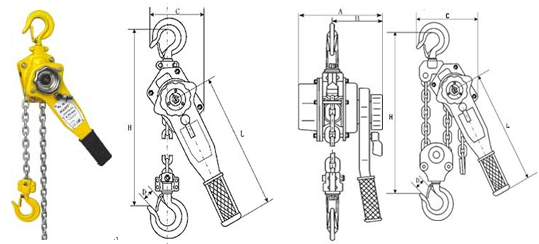

Dimensions (mm) |
A |
145 |
175 |
203 |
203 |
203 |
|
B |
86 |
100 |
118 |
118 |
118 |
|
|
C |
122 |
130 |
150 |
205 |
316 |
|
|
D |
37 |
45 |
50 |
64 |
85 |
|
|
L |
280 |
410 |
410 |
410 |
410 |
|
|
Net weight (kg) |
7.5 |
11.5 |
21 |
31.5 |
47 |
|
|
Extra weight per meter extra lift (kg) |
0.8 |
1.4 |
2.2 |
4.4 |
6.6 |
|
Remarks: Hoists with the lift in other lengths are also available.
LEVER HOIST, LH-A TYPE
