MINI LEVER HOIST, LH-E TYPE

MINI LEVER HOIST, LH-E TYPE
Product Description



 Features:

  • Forged upper and lower hooks with latches
  • High quality plated load chain
  • Lightweight stamped steel design
  • Compact, allows for use in just about any confined space
  • Impact resistant, all-steel frame, gear case and cover
  • Free wheeling mechanism allows for quick and easy take-up and positioning of hook
  • Rubber handle for ease of use
  • Metric rated
  • Meets ANSI B30.21 Specifications
  • Individual serial numbers stamped on hoist
  • Hoists tested at 125% of rated load prior to shipment

Individual Load Test Certificates provided with each hoist



Model

LHE025

LHE050

Capacity (kgs)

250

500

Standard lift (m)

1

1.5

Running test load    (kN)

3.2

6.3

Headroom(drawm close up) Hmin (mm)

230

260

Effort required to lift max. load (N)

250

340

No.of Falls of load chain

1

1

Load chain  (mm)

4 x 12

5 X 15

Length of lever handles (mm)

160

300

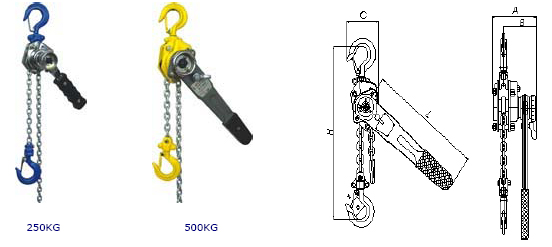

Dimensions (mm)

A

92

105

B

72

78

C

85

80

D

30

35

L

160

300

K

25

30

Net weight (kg)

1.8

4

Extra weight per meter extra lift (kg)

0.41

0.52



Remarks: Hoists with the lift in other lengths are also available.
