ELECTRIC CHAIN HOIST EHB TYPE

ELECTRIC CHAIN HOIST EHB TYPE
Product Description



  • With suspension hook. push, geared or electric trolley.
  • Standard lift height 3 m, control cable 2.5m
  • Operating voltage 220-440V, 50/60Hz, 1-3 phase
  • Low voltage control 36V is standard.
  • High efficient energy-saving motor, asbestos free brake system.
  • High tensile aluminium alloy cover is light in construction, offers strong corrosion resistance.
  • Top and bottom hooks are fitted with safety latches as standard.
  • Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
  • Solid chain bucket.
  • Super strong surface hardened chain
  • Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
  • The unique friction clutch overload protection, which protects the unit from overloading.
  • High quality electric components with safety protection.



MODEL

EHB-025

EHB-050

EHB-100

EHB-200

EHB-250

EHB300

EHB-500

EHB-1000

CAPACITY  (TON)

0.25

0.5

1

2

2.5

3

5

10

STANDARD LIFT  ( M)

3

3

3

3

3

3

3

3

PROOF LOAD  (Kn)

3.12

6.3

12.5

25

31.3

37.5

62.5

125

MOTOR POWER  (KW)

0.9/0.3

0.9/0.3

1.1/0.37

1.1/0.37

3/1

3/1

3/1

3/1

GROUP ISO

M5

M5

M4

M4

M5

M5

M4

M4

LOAD CHAIN (mm)

6.3x19(1)

6.3x19(1)

8x24(1)

8x24(2)

11.2x34(1)

11.2x34(1)

11.2x34(2)

11.2X34(4)

LIFTING SPEED(M/MIN.)

14/4.6

7.6/2.5

5/1.6

2.5/0.8

5.2/1.7

5/1.6

2.6/0.8

1.3/0.4

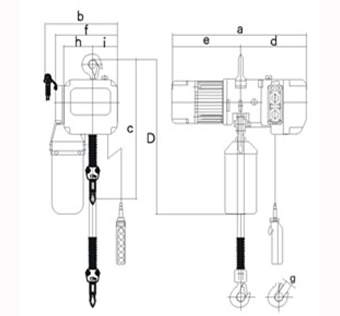

DIMENSIONS (MM)

C

505

505

550

660

605

605

920

1300

D

620

620

640

640

770

770

860

1050

a

559

559

559

559

680

680

680

680

b

304

304

304

304

408

408

460

681

d

273

273

273

273

336

336

336

336

e

286

286

286

286

344

344

344

344

f

255

255

255

255

342

342

342

342

g

24

31

38

50

45

45

61

71

h

120

120

120

120

170

170

170

170

i

102

102

102

102

166

166

166

166

NET WEIGHT  (KG)

36

37

40

50

100

105

120

280
