Low Headroom Electric Chain Hoist

Low Headroom Electric Chain Hoist
Product Description

 ELECTRIC CHAIN HIOST





HHB

Low Headroom Electric Chain Hoist With Electric Motor Trolley And Manual Trolley

0.5T-10T

Low Headroom





3-phase, 380v, 50Hz (Single Speed/Dual Speed)





Model

Capacity

ton

Standard Lift

m

Test Load

kn

Motor Power (kw)
Single/Dual

No. of

Chain

Dia of Chain

mm

Lifting Speed
(m/min)

Single/Dual

Net Weight

kg

Extra weight per
metre of extra lift kg

HHB-0.5AL

0.5

3

6.25

0.75,0.8/0.27

1

6.3

6.8,6.9/2.3

47

0.81

HHB-1.0AL

1.0

3

12.5

1.5,1.8/0.6

1

7.1

6.6,6.9/2.3

61

1.1

HHB-1.0BL

1.0

3

12.5

0.75,0.8/0.27

2

6.3

3.4,3.5/1.2

52

1.62

HHB-2.0AL

2.0

3

25

3.0,3.0/1.0

1

10

6.6,6.8/2.3

115

2.3

HHB-2.0BL

2.0

3

25

1.5,1.8/0.6

2

7.1

3.3,3.3/1.1

73

2.2

HHB-3.0AL

3.0

3

37.5

3.0,3.0/1.0

1

11.2

5.4,5.4/1.8

122

2.8

HHB-3.0BL

3.0

3

37.5

3.0,3.0/1.0

2

10

4.4,4.5/1.5

131

4.7

HHB-5.0L

5.0

3

62.5

3.0,3.0/1.0

2

11.2

2.8,2.7/0.9

151

5.6

HHB-7.5L

7.5

3

94

3.0,3.0/1.0

3

11.2

1.8,1.8/0.6

266

8.4

HHB- 10L

10

6

125

3.0,3.0x2/1.0x2

4

11.2

2.7,2.7/0.9

335

11.2

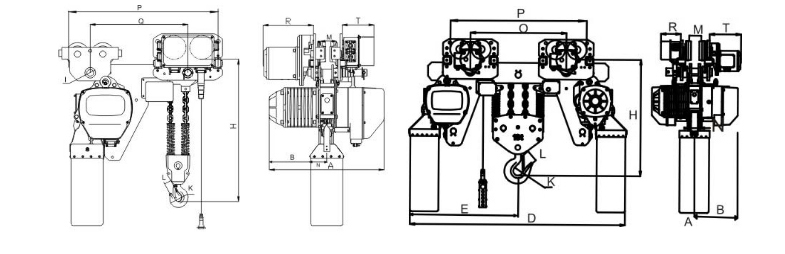

Main Dimension(Single Speed/Dual Speed)



Model

Capacity ton

H
mm

A
mm

B
mm

D
mm

E
mm

I
mm

K
mm

L
mm

M
mm

N
mm

P
mm

Q
mm

R
mm

T
mm

I-beam size
mm

HHB-0.5AL

0.5

440

460

230

/

/

31

35

25

25

17

206

111

142

231

58-153

HHB-1.0AL

1.0

480

520

260

/

/

31

40

31

31

22

206

111

142

231

58-153

HHB-1.0BL

1.0

570

615

295

/

/

31

47

31

31

22

206

111

142

231

58-153

HHB-2.0AL

2.0

535

615

295

/

/

31

47

38

38

30

237

127

142

231

82-178

HHB-2.0BL

2.0

535

520

260

/

/

31

47

38

38

30

237

127

142

231

82-178

HHB-3.0AL

3.0

640

615

295

/

/

36

58

47

47

36

265

140

142

231

100-178

HHB-3.0BL

3.0

685

615

295

/

/

36

58

47

47

36

265

140

142

231

100-178

HHB-5.0L

5.0

740

615

295

/

/

43

60

48

48

43

296

156

142

231

100-178

HHB-7.5L

7.5

890

615

295

/

/

43

85

80

80

55

296

156

142

231

100-178

HHB- 10L

10

880

630

315

1640

820

54

85

80

80

55

366

191

142

231

150-220
