Europe Model

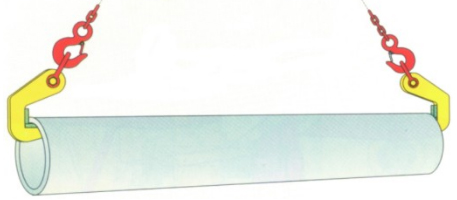

■ Suitable for horizontal lifting for steel and concrete pipes.
■ Capacity: 1.5-16T
■ The working load is the capacity of one pair. One pair or two pairs should be used together
■ The connecting shackle is available at extra cost
|
Model |
Capacity |
Opening Size |
Dimension (mm) |
Net Weight |
Shackle |
|||||
|
(kg) |
(R=mm) |
A |
B |
C |
D |
E |
F |
(kg) |
（G2130） |
|
|
THP1.5 |
1500 |
40 |
120 |
32 |
195 |
75 |
36 |
25 |
2.2 |
7/8"(6.5T) |
|
THP3.0 |
3000 |
40 |
120 |
32 |
195 |
75 |
40 |
25 |
2.5 |
1"(8.5T) |
|
THP4.0 |
4000 |
50 |
120 |
32 |
205 |
75 |
40 |
29 |
3.0 |
1"(8.5T) |
|
THP6.0 |
6000 |
50 |
120 |
32 |
205 |
75 |
44 |
29 |
3.3 |
1-1/8"(9.5T) |
|
THP-8.0 |
8000 |
70 |
120 |
32 |
255 |
75 |
44 |
29 |
4.5 |
1-1/8"(9.5T) |
|
THP-16.0 |
16000 |
70 |
145 |
32 |
300 |
75 |
52 |
40 |
11 |
1-1/2"(17T) |
THP lifting clamp
