FEATURES 1. Robust all steel construction with safety operation. |
|
|
|
BC010 |
BC020 |
BC030 |
BC050 |
BC100 |
|
|
Capacity |
1T |
2T |
3T |
5T |
10T |
|
|
Test Load KN |
19.6 |
39.2 |
58.8 |
98 |
196 |
|
|
Flange Width mm |
75-220 |
75-220 |
80-320 |
80-320 |
90-320 |
|
|

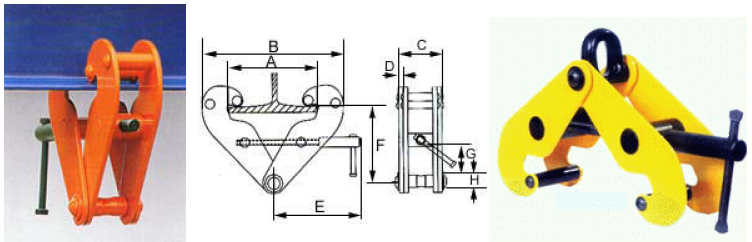

Dimensions(mm) |
Max.A |
260 |
260 |
354 |
354 |
365 |
|
Min.B |
180 |
180 |
235 |
235 |
320 |
|
|
Max.B |
360 |
360 |
490 |
490 |
505 |
|
|
C |
64 |
74 |
103 |
110 |
120 |
|
|
D |
5 |
6 |
8 |
10 |
12 |
|
|
E |
215 |
215 |
260 |
260 |
280 |
|
|
Max.F |
155 |
155 |
225 |
225 |
235 |
|
|
Min.F |
102 |
102 |
140 |
140 |
170 |
|
|
Min.G |
25 |
25 |
45 |
45 |
50 |
|
|
H |
22 |
22 |
24 |
28 |
40 |
|
|
Net Weight kg |
4.5 |
5 |
10.5 |
11 |
16 |
|
Beam Clamp
