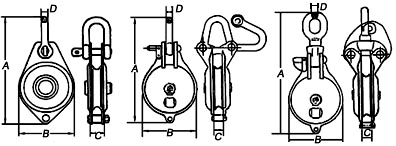

MARINE STEEL BLOCK, EM TYP
|
|
|
TYPE |
SHEAVE DIA |
S.W.L(TON) |
MAIN DIMENSIONS (mm) |
FOR WIRE DIA (mm) |
WEIGHT |
|||
|
A |
B |
C |
D |
|||||
|
EM-075005 |
75 |
0.5 |
230 |
85 |
26 |
12 |
8 |
1.5 |
|
EM-100010 |
100 |
1 |
285 |
121 |
34 |
16 |
8 |
1.9 |
|
EM-125015 |
125 |
1.5 |
346 |
145 |
38 |
18 |
9 |
3.6 |
|
EM-150020 |
150 |
2 |
419 |
180 |
41 |
22 |
12 |
6.0 |
|
EM-200040 |
200 |
4 |
517 |
225 |
46 |
28 |
16 |
12.5 |
|
EM-250050 |
250 |
5 |
655 |
275 |
60 |
28 |
22 |
16 |
|
EM-075005-2 |
75 |
0.5 |
230 |
85 |
50 |
12 |
8 |
2.1 |
|
EM-100010-2 |
100 |
1 |
285 |
121 |
61 |
16 |
8 |
3.0 |
|
EM-125015-2 |
125 |
1.5 |
335 |
145 |
73 |
18 |
9 |
5.9 |
|
EM-150020-2 |
150 |
2 |
365 |
180 |
83 |
22 |
12 |
9.0 |
|
EM-200040-2 |
200 |
4 |
517 |
225 |
93 |
28 |
16 |
17.5 |
|
EM-250050-2 |
250 |
5 |
600 |
275 |
115 |
28 |
22 |
28.6 |
MARINE STEEL BLOCK, HM TYPE
|
TYPE |
SHEAVE DIA |
S.W.L (TON) |
MAIN DIMENSIONS (mm) |
FOR WIRE DIA (mm) |
WEIGHT |
|||
|
A |
B |
C |
D |
|||||
|
HM-075005 |
75 |
0.5 |
178 |
85 |
26 |
12 |
8 |
1.1 |
|
HM-100010 |
100 |
1 |
235 |
121 |
34 |
16 |
8 |
1.8 |
|
HM-125015 |
125 |
1.5 |
305 |
145 |
38 |
18 |
9 |
3.5 |
|
HM-150020 |
150 |
2 |
350 |
180 |
41 |
22 |
12 |
5.1 |
|
HM-200040 |
200 |
4 |
425 |
225 |
46 |
28 |
16 |
11.5 |
|
HM-250050 |
250 |
5 |
495 |
275 |
60 |
28 |
22 |
17 |
|
HM-075005-2 |
75 |
0.5 |
178 |
85 |
50 |
12 |
8 |
1.8 |
|
HM-100010-2 |
100 |
1 |
235 |
121 |
61 |
16 |
8 |
2.8 |
|
HM-125015-2 |
125 |
1.5 |
305 |
145 |
73 |
18 |
9 |
5.5 |
|
HM-150020-2 |
150 |
2 |
350 |
180 |
83 |
22 |
12 |
8.5 |
|
HM-200040-2 |
200 |
4 |
425 |
225 |
93 |
28 |
16 |
16.5 |
|
HM-250050-2 |
250 |
5 |
495 |
275 |
115 |
28 |
22 |
25.5 |
MARINE STEEL BLOCK, EM TYPE
