Size |
Chain (4:1) |
Wire Rope (5:1) |
Dimension (mm) |
Weight (kg/pc) |
|||||
|
WLL/t |
B.L/t |
WLL/t |
B.L/t |
A |
B |
D |
S |
||
|
7/16" |
1.6 |
6.4 |
1.2 |
6 |
100 |
80 |
12 |
6 |
0.27 |
|
1/2" |
2.76 |
11.04 |
2.2 |
11 |
100 |
60 |
14 |
7.6 |
0.38 |
|
11/16" |
4 |
16 |
3.2 |
16 |
160 |
90 |
18 |
8.4 |
0.85 |
|
3/4" |
6.5 |
26 |
5.2 |
26 |
160 |
90 |
20 |
10.4 |
1.2 |
|
7/8" |
8.2 |
32.8 |
6.5 |
32.5 |
180 |
100 |
22 |
13.5 |
1.63 |
|
1" |
11.5 |
46 |
9.2 |
46 |
180 |
100 |
25 |
16.5 |
2.13 |
|
1-1/8" |
11.8 |
47.2 |
9.4 |
47 |
270 |
140 |
28 |
- |
3.81 |
|
1-1/4" |
16 |
64 |
12.8 |
64 |
270 |
140 |
32 |
- |
5.05 |

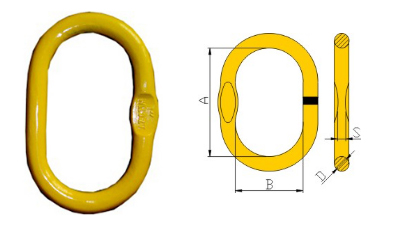

G80 Master Link A-344
