Yellow painted, other colour is available as per request.
Working load limit permanently shown on the body.
Max proof load is 2.5 times of the working load limited.
Min. Breaking strength is 4 times of the W.L.L.
|
Size (in) |
W.L.L (lbs) |
W.L.L (lbs) |

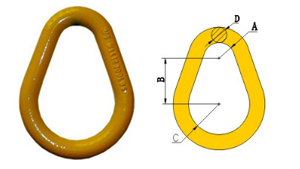

Dimension (mm) |
Weight (kg/pc) |
|||
|
Alloy (5:1) |
Carbon (6:1) |
A |
B |
C |
D |
||
|
3/8" |
3600 |
1800 |
10 |
28.5 |
19 |
10 |
0.1 |
|
1/2" |
7000 |
2900 |
12.5 |
38 |
25.5 |
12.5 |
0.25 |
|
5/8" |
9000 |
4200 |
16 |
47.5 |
32 |
16 |
0.5 |
|
3/4" |
12300 |
6000 |
19 |
57 |
38 |
19 |
0.8 |
|
7/8" |
14000 |
8300 |
22 |
67 |
44.5 |
22.2 |
1.4 |
|
1" |
24360 |
10800 |
25 |
76 |
51 |
25.4 |
1.9 |
|
1-1/8" |
30600 |
12000 |
28 |
86 |
57 |
28.5 |
2.92 |
|
1-1/4" |
36000 |
16750 |
32 |
95 |
63.5 |
31.75 |
3.75 |
|
1-3/8" |
43000 |
20500 |
35 |
105 |
70 |
35 |
5.12 |
|
1-1/2" |
54300 |
25000 |
38 |
114 |
76 |
38 |
6.5 |
Forged Pear Shape Link
