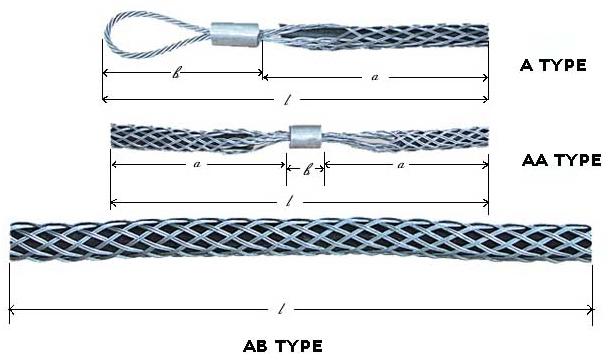

CABLE SOCKS A TYPE |
|||||
SIZE / MM |
A |
B |
L |
WEIGHT / KG |
MAX. WORKING LOAD (KG) |
8 - 11 |
350 |
140 |
490 |
- |
600 |
11 - 13 |
400 |
190 |
590 |
- |
1200 |
13 - 16 |
500 |
190 |
690 |
- |
1200 |
16 - 21 |
550 |
220 |
770 |
0.38 |
1500 |
21 - 25 |
750 |
220 |
970 |
0.49 |
2000 |
25 - 30 |
750 |
250 |
1000 |
0.50 |
3000 |
30 - 35 |
900 |
300 |
1210 |
1.23 |
3500 |
35 - 42 |
1000 |
360 |
1360 |
1.75 |
4000 |
42 - 50 |
1300 |
360 |
1660 |
2.00 |
4500 |
CABLE SOCKS AA TYPE |
|||||
SIZE / MM |
A |
B |
L |
WEIGHT / KG |
MAX. WORKING LOAD (KG) |
8 - 11 |
350 |
140 |
840 |
- |
600 |
11 - 13 |
400 |
210 |
1010 |
- |
1200 |
13 - 16 |
500 |
210 |
1210 |
- |
1200 |
16 - 21 |
550 |
220 |
1320 |
- |
1500 |
21 - 25 |
750 |
220 |
1720 |
0.90 |
2000 |
25 - 30 |
750 |
220 |
1720 |
0.90 |
3000 |
30 - 35 |
900 |
280 |
2080 |
1.10 |
3500 |
35 - 42 |
1000 |
280 |
2280 |
2.07 |
4000 |
42 - 50 |
1300 |
280 |
2880 |
3.05 |
4500 |
CABLE SOCKS AB TYPE |
|||||
SIZE / MM |
L |
WEIGHT / KG |
MAX. WORKING LOAD (KG) |
||
8 - 11 |
750 |
- |
600 |
||
11 - 13 |
900 |
- |
1200 |
||
13 - 16 |
1200 |
- |
1200 |
||
16 - 21 |
1300 |
0.25 |
1500 |
||
21 - 25 |
1600 |
0.50 |
2000 |
||
25 - 30 |
1700 |
0.67 |
3000 |
||
30 - 35 |
2000 |
0.73 |
3500 |
||
35 - 42 |
2250 |
1.65 |
4000 |
||
42 - 50 |
2700 |
2.30 |
4500 |

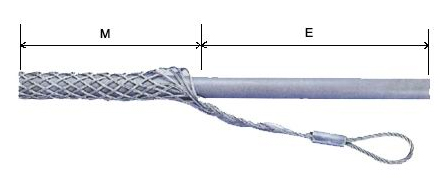

Cable Socks S Type
Cable Diameter Range (mm) |
M (MM) |
E (MM) |
Approx.Breaking Strength (Kg) |
STANDARD TYPE |
|||
19 - 25 |
280 |
127 |
1100 |
25 - 32 |
280 |
127 |
1600 |
32 - 38 |
508 |
152 |
1800 |
38 - 44 |
432 |
229 |
1800 |
44 - 50 |
457 |
254 |
1800 |
51 - 63 |
483 |
254 |
1800 |
63 - 76 |
508 |
254 |
1800 |
76 - 89 |
533 |
305 |
1800 |
89 - 102 |
559 |
305 |
1800 |
LONG TYPE |
|||
19 - 25 |
508 |
178 |
1100 |
25 - 32 |
508 |
203 |
1600 |
32 - 38 |
584 |
203 |
1800 |
38 - 50 |
635 |
229 |
1800 |
51 - 63 |
660 |
254 |
1800 |
63 - 76 |
736 |
254 |
1800 |
76 - 89 |
813 |
305 |
1800 |
89 - 102 |
889 |
305 |
1800 |
