Wire Mesh Slings

Wire Mesh Slings
Product Description

 PRODUCT FEATURES:

  • Resists abrasion and cutting for greater sling life.
  • Low stretch and good flexibility reduce load damage.
  • Wide bearing area distributes load to help avoid load damage.
  • Alloy steel end fittings - plated for long life.
  • Wire mesh is zinc plated - resists corrosion.
  • Each sling permanently stamped with capacity and serial number.
  • Each sling proof tested and certified.
  • Width of mesh helps control and balance load.
  • Repairable - thus very cost effective.

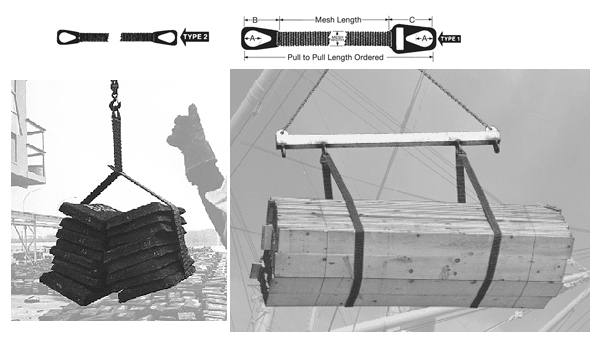

Model Number Rated Capacity (lbs.) - Choker Rated Capacity (lbs.) - Basket End Fittings - A (in.) End Fitting Type 1 - B (in.) End Fitting Type 2 - C (in.) Gage Width Specify Pull to Pull Length (ft.) Specify End Fitting Type 1 or 2 Weight per (lbs.) 3 (ft.) Weight per (lbs.) Extra (ft.)
2 2300 4600 2 3-7/8 5-5/8 10-2 Specify Length Specify Type 6 1.3
3 3500 7000 2-1/4 4-3/8 6-1/4 10-3 Specify Length Specify Type 8 1.9
4 4800 9600 3 5 6-3/4 10-4 Specify Length Specify Type 10 2.5
6 7200 14400 3-1/2 5-5/8 7-3/4 10-6 Specify Length Specify Type 14 3.9
8 9600 19200 4-1/2 7-1/2 9 10-8 Specify Length Specify Type 19 5.1
10 12000 24000 4-3/4 8 10-7/8 10-10 Specify Length Specify Type 25 6.4
12 14400 28800 5 8-5/8 11-3/8 10-12 Specify Length Specify Type 29 7.6
14 16800 33600 5 8-3/4 12-3/4 10-14 Specify Length Specify Type 38 8.9
16 19200 38400 5-1/4 9-1/8 14-1/4 10-16 Specify Length Specify Type 50 10
18 21600 43200 5-1/2 9-3/4 15-3/4 10-18 Specify Length Specify Type 70 11
20 24000 48000 5-3/4 10-1/8 17 10-20 Specify Length Specify Type 77 13
