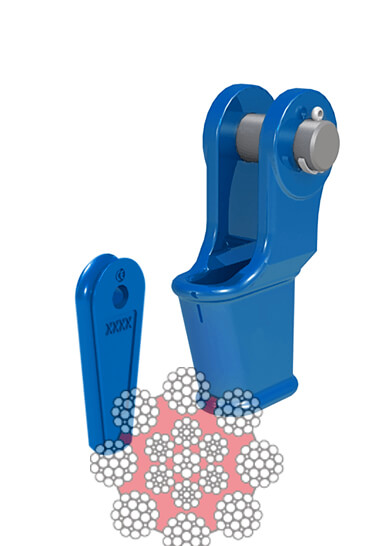

1. GB standard wire rope sockets
2. casting by carbon steel
3.safety factor 4
4. size 10mm -40mm
|
ITEM NO. |
Rope Diameter Range (mm) |
Wedge socket size (mm) |
Weight (Kg)
|
||||
|
A |
B |
D |
R |
H |
|||
|
TF2406 |
6 |
29 |
13 |
16 |
20 |
90 |
0.9 |
|
TF2408 |
8 |
31 |
15 |
18 |
22 |
100 |
1.2 |
|
TF2410 |
10 |
38 |
18 |
20 |
25 |
120 |
1.5 |
|
TF2412 |
12 |
44 |
20 |
25 |
30 |
155 |
2.5 |
|
TF2414 |
14 |
51 |
23 |
30 |
35 |
180 |
4 |
|
TF2416 |
16 |
60 |
26 |
34 |
42 |
200 |
6.2 |
|
TF2418 |
18 |
64 |
28 |
36 |
44 |
220 |
9 |
|
TF2420 |
20 |
72 |
30 |
38 |
47 |
240 |
10.5 |
|
TF2422 |
22 |
76 |
32 |
40 |
52 |
250 |
14 |
|
TF2424 |
24 |
83 |
35 |
50 |
60 |
270 |
17 |
|
TF2426 |
26 |
92 |
38 |
55 |
65 |
290 |
22 |
|
TF2428 |
28 |
94 |
40 |
60 |
70 |
305 |
27 |
|
TF2432 |
32 |
110 |
44 |
65 |
77 |
370 |
38 |
|
TF2436 |
36 |
122 |
48 |
70 |
85 |
400 |
58 |
|
TF2440 |
40 |
140 |
55 |
75 |
90 |
450 |
74 |
|
TF2444 |
44 |
140 |
60 |
80 |
90 |
480 |
82 |
|
TF2448 |
48 |
144 |
65 |
85 |
95 |
500 |
88 |
wire rope wedge socket
