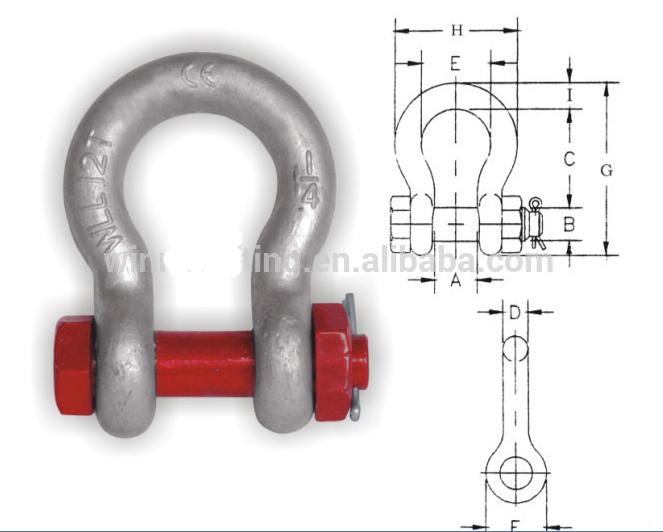

Bolt type Anchor Shackles with thin head bolt-nut with cotter pin. Meets the requirements of US Federal Specification RR-C-271 Type IVA. Grade A. Class 3.
Finish: Hot dipped galvanized
|
ITEM NO
|
Nominal Size
|
Working Load Limit
|
Dimensions(mm)
|
Weight Each
|
|
(in.)
|
(tons)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
(kg)
|
|
31201
|
3/16
|
1/3
|
9.65
|
6.35
|
22.4
|
4.85
|
15.2
|
14.2
|
37.2
|
24.9
|
4.85
|
0.03
|
|
31202
|
1/4
|
1/2
|
11.9
|
7.85
|
28.7
|
6.35
|
19.8
|
15.5
|
46.7
|
32.5
|
6.35
|
0.05
|
|
31203
|
5/16
|
3/4
|
13.5
|
9.65
|
31.0
|
7.85
|
21.3
|
19.1
|
53.0
|
37.3
|
7.85
|
0.10
|
|
31204
|
3/8
|
1
|
16.8
|
11.2
|
36.6
|
9.65
|
26.2
|
23.1
|
63.0
|
45.2
|
9.65
|
0.15
|
|
31205
|
7/16
|
1-1/2
|
19.1
|
12.7
|
42.9
|
11.2
|
29.5
|
26.9
|
74.0
|
51.5
|
11.2
|
0.22
|
|
31206
|
1/2
|
2
|
20.6
|
16.0
|
47.8
|
12.7
|
33.3
|
30.2
|
83.5
|
58.5
|
12.7
|
0.36
|
|
31207
|
5/8
|
3-1/4
|
26.9
|
19.1
|
60.5
|
16.0
|
42.9
|
38.1
|
106
|
74.5
|
17.5
|
0.76
|
|
31208
|
3/4
|
4-3/4
|
31.8
|
22.4
|
71.5
|
19.1
|
51.0
|
46.0
|
126
|
89.0
|
20.6
|
1.23
|
|
31209
|
7/8
|
6-1/2
|
36.6
|
25.4
|
84.0
|
22.4
|
58.0
|
53.0
|
148
|
102
|
24.6
|
1.79
|
|
31210
|
1
|
8-1/2
|
42.9
|
28.7
|
95.5
|
25.4
|
68.5
|
60.5
|
167
|
119
|
26.9
|
2.57
|
|
31211
|
1-1/8
|
9-1/2
|
46.0
|
31.8
|
108
|
28.7
|
74.0
|
68.5
|
190
|
131
|
31.8
|
3.75
|
|
31212
|
1-1/4
|
12
|
51.5
|
35.1
|
119
|
31.8
|
82.5
|
76.0
|
210
|
146
|
35.1
|
5.31
|
|
31213
|
1-3/8
|
13-1/2
|
57.0
|
38.1
|
133
|
35.1
|
92.0
|
84.0
|
233
|
162
|
38.1
|
7.18
|
|
31214
|
1-1/2
|
17
|
60.5
|
41.4
|
146
|
38.1
|
98.5
|
92.0
|
254
|
175
|
41.1
|
9.43
|
|
31215
|
1-3/4
|
25
|
73.0
|
51.0
|
178
|
44.5
|
127
|
106
|
313
|
225
|
57.0
|
15.4
|
|
31216
|
2
|
35
|
82.5
|
57.0
|
197
|
51.0
|
146
|
122
|
348
|
253
|
61.0
|
23.7
|
|
31216A
|
2 -1/4
|
42.5
|
95
|
65
|
220
|
57
|
160
|
143
|
382
|
274
|
67
|
33.5
|
|
31217
|
2-1/2
|
55
|
105
|
70.0
|
267
|
66.5
|
184
|
145
|
453
|
327
|
79.5
|
44.61
|
|
31218
|
3
|
85
|
127
|
82.5
|
330
|
76.0
|
200
|
165
|
546
|
365
|
92.0
|
70
|
|
31219
|
3-1/2
|
120
|
133
|
95.5
|
372
|
92.0
|
229
|
203
|
626
|
419
|
105
|
120
|
|
31220
|
4
|
150
|
140
|
108
|
368
|
104
|
254
|
229
|
653
|
468
|
116
|
153
|
|
Us Type High Tensile Forged Shackle G2130 S2130
