METRIC COARSE THREAD

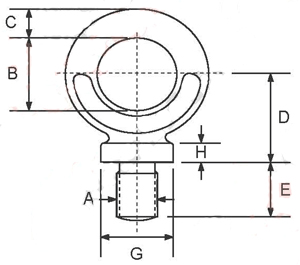

ITEM NO |
VERTCAL |
A |
B |
C |
D |
E |
G |
H |
SWL TONNES |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
66401 |
0.10 |
6 |
22 |
9 |
27 |
18 |
17 |
5 |
66402 |
0.15 |
8 |
22 |
9 |
27 |
18 |
17 |
5 |
66403 |
0.25 |
10 |
22 |
9 |
27 |
18 |
17 |
5 |
66404 |
0.32 |
12 |
22 |
9 |
27 |
18 |
17 |
5 |
66405 |
0.50 |
14 |
32 |
13 |
41 |
28 |
29 |
9 |
66406 |
0.63 |
16 |
29 |
11 |
34 |
23 |
23 |
6 |
66407 |
1.00 |
18 |
40 |
15 |
47 |
32 |
32 |
9 |
66408 |
1.25 |
20 |
40 |
15 |
47 |
32 |
32 |
9 |
66409 |
1.60 |
22 |
44 |
17 |
53 |
35 |
35 |
14 |
66410 |
2.00 |
24 |
51 |
19 |
60 |
40 |
40 |
12 |
66411 |
3.20 |
30 |
64 |
24 |
76 |
51 |
51 |
14 |
ALSO AVAILABLE IN B.S.W. U.N.C and U.N.F THREAD
