ITEM NO |
SIZE |

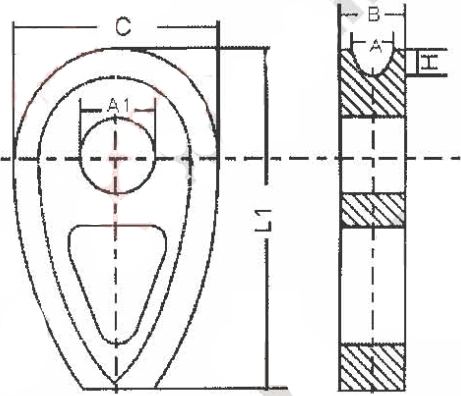

Dimensions mm |
WEIGHT |
|||||
|
mm |
A |
B |
A1 |
C |
L1 |
H |
KG/PC |
|
|
TH-29141 |
8 |
9 |
15 |
14 |
40 |
66 |
4.5 |
0.181 |
|
TH-29142 |
10 |
11 |
17.5 |
18 |
50 |
82 |
6 |
0.318 |
|
TH-29143 |
12 |
13 |
20 |
21 |
60 |
98 |
7.5 |
0.515 |
|
TH-29144 |
14 |
16 |
23.5 |
25 |
70 |
114 |
9 |
0.799 |
|
TH-29145 |
16 |
18 |
26 |
28 |
80 |
130 |
10.5 |
0.896 |
|
TH-29146 |
18 |
20 |
28.5 |
31 |
90 |
145 |
12 |
1.211 |
|
TH-29147 |
20 |
22 |
31 |
35 |
100 |
161 |
13.5 |
1.61 |
|
TH-29148 |
22 |
24 |
33.5 |
38 |
110 |
177 |
15 |
2.11 |
|
TH-29149 |
24 |
26 |
36 |
41 |
120 |
193 |
16.5 |
2.71 |
|
TH-29150 |
26 |
29 |
39.5 |
44 |
130 |
209 |
18 |
3.55 |
|
TH-29151 |
28 |
31 |
42 |
47 |
140 |
224 |
20 |
4.2 |
|
TH-29152 |
32 |
35 |
47 |
53 |
160 |
256 |
23 |
6.3 |
|
TH-29153 |
36 |
40 |
53 |
59 |
180 |
288 |
26 |
8.84 |
|
TH-29154 |
40 |
44 |
58 |
65 |
200 |
320 |
29 |
11 |
|
TH-29155 |
44 |
48 |
63 |
70 |
220 |
352 |
32 |
16 |
|
TH-29156 |
48 |
53 |
69 |
76 |
240 |
384 |
35 |
20 |
DIN 3091 Ductile Iron Thimble
