HOT DIP GALVANIZED
STAINLESS STEEL AVAILABLE
G-402 REGULAR QUENCHED and TEMPERED
|
ITEM NO |
Size |
Safe Working Load |

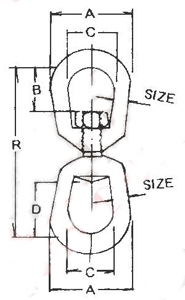

Dimensions (in) |
||||
|
in |
LBS |
A |
B |
C |
D |
R |
|
|
69001 |
1/4 |
850 |
1-1/4 |
11/16 |
3/4 |
1-1/16 |
2-15/16 |
|
69002 |
5/16 |
1250 |
1-5/8 |
13/16 |
1 |
1-1/4 |
3-9/16 |
|
69003 |
3/8 |
2250 |
2 |
15/16 |
1-1/4 |
1-1/2 |
4-5/16 |
|
69004 |
1/2 |
3600 |
2-1/2 |
1-5/16 |
1-1/2 |
2 |
5-7/16 |
|
69005 |
5/8 |
5200 |
3 |
1-9/16 |
1-3/4 |
2-3/8 |
6-9/16 |
|
69006 |
3/4 |
7200 |
3-1/2 |
1-3/4 |
2 |
2-5/8 |
7-3/16 |
|
69007 |
7/8 |
10000 |
4 |
2-1/16 |
2-1/4 |
3-1/16 |
8-3/16 |
|
69008 |
1 |
12500 |
4-1/2 |
2-5/16 |
2-1/2 |
3-1/2 |
9-5/8 |
|
69009 |
1-1/8 |
15200 |
5 |
2-3/8 |
2-3/4 |
3-3/4 |
10-3/8 |
|
69010 |
1-1/4 |
18000 |
5-5/8 |
2-11/16 |
3-1/8 |
4-1/16 |
11-1/8 |
|
69011 |
1-1/2 |
45200 |
7 |
4-3/16 |
4 |
4-3/16 |
17-1/8 |
Forged Swivel Regular
