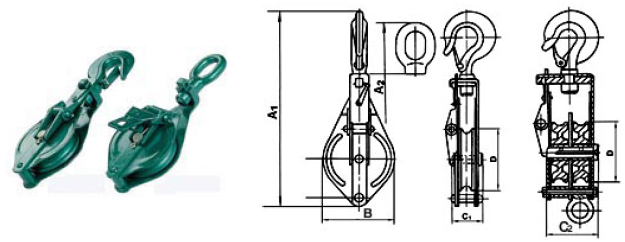

SINGLE SHEAVE SNATCH BLOCKS, HS & ES TYPE
|
T Y P E |
S.W.L |
SHEAVE DIA |
MAIN DIMENSIONS (mm) |
WIRE ROPE SIZE |
WEIGHT |
||||
|
HOOK |
EYE |
TON |
D(mm) |
HOOK A1 |
EYE A2 |
B |
C1 |
MM |
kg |
|
HS-075005 |
ES-075005 |
0.5 |
75 |
268 |
227 |
87 |
50 |
8 |
1.5 |
|
HS-100010 |
ES-100010 |
1 |
100 |
311.5 |
284.5 |
112 |
55.5 |
10 |
2.6 |
|
HS-125015 |
ES-125015 |
1.5 |
125 |
370 |
344 |
140 |
63.5 |
13 |
4.8 |
|
HS-150020 |
ES-150020 |
2 |
150 |
442.5 |
417 |
168 |
101 |
16 |
7.4 |
|
HS-180030 |
ES-180030 |
3 |
180 |
498 |
478 |
204 |
107 |
19 |
11.9 |
|
HS-200040 |
ES-200040 |
4 |
200 |
590.5 |
556 |
226 |
128 |
22 |
20.4 |
|
HS-250050 |
ES-250050 |
5 |
250 |
706.5 |
651 |
276 |
147 |
25 |
33 |
|
HS-300060 |
ES-300060 |
6 |
300 |
795 |
775 |
330 |
162 |
26 |
48 |
|
HS-350100 |
ES-350100 |
10 |
350 |
934 |
898 |
395 |
178 |
28 |
66 |
DOUBLE SHEAVE SNATCH BLOCKS, HD & ED TYPE
|
T Y P E |
S.W.L |
SHEAVE DIA |
MAIN DIMENSIONS (mm) |
WIRE ROPE SIZE |
WEIGHT |
||||
|
HOOK |
EYE |
TON |
D(mm) |
HOOK A1 |
EYE A2 |
B |
C2 |
MM |
kg |
|
HD-075005 |
ED-075005 |
0.5 |
75 |
268 |
227 |
87 |
77 |
8 |
2.8 |
|
HD-100010 |
ED-100010 |
1 |
100 |
311.5 |
284.5 |
112 |
88 |
10 |
4.3 |
|
HD-125015 |
ED-125015 |
1.5 |
125 |
370 |
344 |
140 |
100 |
13 |
7.8 |
|
HD-150020 |
ED-150020 |
2 |
150 |
442.5 |
417 |
168 |
146 |
16 |
12.2 |
|
HD-180030 |
ED-180030 |
3 |
180 |
498 |
478 |
204 |
157 |
19 |
18.5 |
|
HD-200040 |
ED-200040 |
4 |
200 |
590.5 |
556 |
226 |
188 |
22 |
31 |
|
HD-250050 |
ED-250050 |
5 |
250 |
706.5 |
651 |
276 |
220 |
25 |
49.8 |
|
HD-300060 |
ED-300060 |
6 |
300 |
795 |
775 |
330 |
238 |
26 |
72 |
|
HD-350100 |
ED-350100 |
10 |
350 |
934 |
898 |
395 |
260 |
28 |
102 |
