TYPE |
S.W.L |
SHEAVE DIA |
SHACKLE |
HOOK |
B |
C |
WIRE ROPE SIZE |
WEIGHT |
|
|
A1 |
A2 |
||||||||
|
SHACKLE |
HOOK |
TON |
mm |
kg |
|||||
|
SB-07502 |
HB-07502 |
2 |
75 |
286 |
292 |
82 |
70 |
7~9 |
4 |
|
SB-11504 |
HB-11504 |
4 |
115 |
345 |
358 |
120 |
70 |
10~12 |
6.1 |
|
SB-15004 |
HB-15004 |
4 |
150 |
399 |
412 |
160 |
70 |
16~18 |
13.8 |
|
SB-15008 |
HB-15008 |
8 |
150 |
475 |
498 |
160 |
93 |
20~22 |
14.4 |
|
SB-20008 |
HB-20008 |
8 |
200 |
528 |
549 |
210 |
93 |
20~22 |
16 |
|
SB-20015 |
HB-20015 |
15 |
200 |
663 |
672 |
230 |
102 |
22~24 |
24 |
|
SB-25010 |
HB-25010 |
10 |
250 |
679 |
695 |
260 |
115 |
24~26 |
37.5 |
|
SB-25012 |
HB-25012 |
12 |
250 |
679 |
701 |
260 |
115 |
24~26 |
42 |
|
SB-30012 |
HB-30012 |
12 |
300 |
767 |
797 |
310 |
133 |
24~26 |
56 |
|
SB-30015 |
HB-30015 |
15 |
300 |
884 |
797 |
365 |
133 |
26~28 |
65 |
|
SB-35522 |
HB-35522 |
22 |
355 |
952 |
960 |
365 |
140 |
28~32 |
90 |
|
SB-40022 |
HB-45022 |
22 |
400 |
1019 |
1027 |
415 |
140 |
28~32 |
108 |
|
SB-40030 |
HB-40030 |
30 |
400 |
1126 |
1085 |
415 |
155 |
32~35 |
135 |
|
SB-50030 |
HB-50030 |
30 |
500 |
1256 |
1177 |
514 |
162 |
32~35 |
210 |

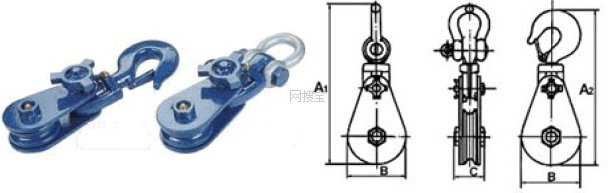

HEAVY DUTY SNATCH BLOCK, SB & HB TYPE
