High Lift Pallet Truck

High Lift Pallet Truck
Product Description



  • Ideal design, pallet truck with the numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
  • Telescopic jack composed of 3 piston rods creating light pumping force giving great rigidity.
  • Support legs come into operation automatically. It prevents the unit from moving when the forks are raised to keep the safety of the operator.
  • Truck automatically shows the descending speed when heavy goods loaded to help prevent cargo damage.
  • 210 degree turning radius.
  • Reduces physical effort and considerably improve the ergonomic conditions at work stations by raising the trucks to the desired height.
  •  2 lateral stabilizers when raised ensure good stability.

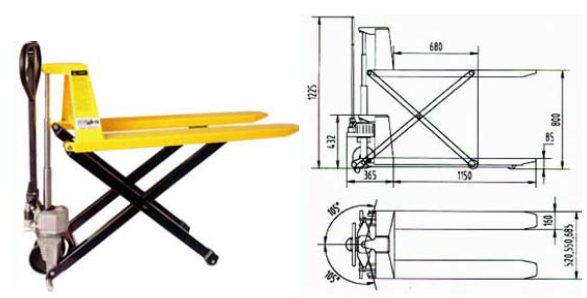

Model

PT-JF

Capacity (kg)

1,000

Total lift height (mm)

800

Lowered fork height (mm)

85

Height of handles (mm)

432

Fork length (mm)

1,150

Width over the forks (mm)

520,550,685

Steering wheel (mm)

sign180x50

Fork wheel (mm)

sign74x50

Truck weight (kg)

95~115
