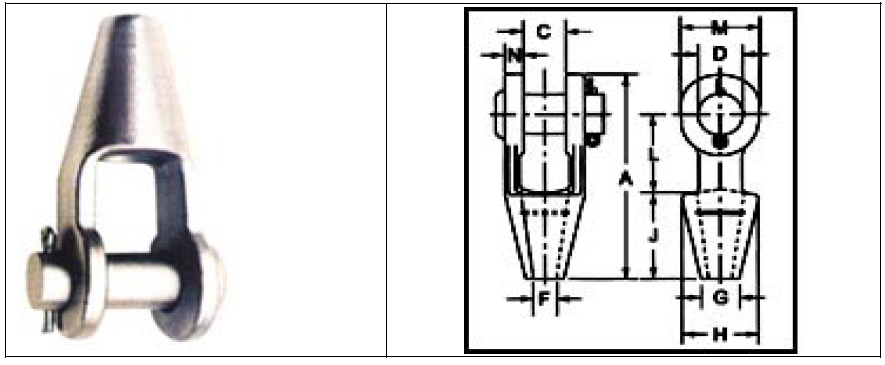

ITEM NO |
Rope Dia. |
Structrual Stand Dia. |
Dimensions (in) |
|||||||||
in |
in |
A |
C |
D |
F |
G |
H |
J |
L |
M |
N |
|
028151 |
1/4 |
- |
4.56 |
.91 |
.69 |
.38 |
.69 |
1.56 |
2.25 |
1.56 |
1.31 |
.36 |
028152 |
5/16-3/8 |
- |
4.84 |
.81 |
.81 |
.50 |
.81 |
1.69 |
2.25 |
1.75 |
1.50 |
.44 |
028153 |
7/16-1/2 |
- |
5.56 |
1.00 |
1.00 |
.56 |
.94 |
1.88 |
2.50 |
2.00 |
1.88 |
.50 |
028154 |
9/16-5/8 |
1/2 |
6.75 |
1.25 |
1.19 |
.69 |
1.13 |
2.25 |
3.00 |
2.50 |
2.25 |
.56 |
028155 |
3/4 |
9/16-5/8 |
7.94 |
1.50 |
1.38 |
.81 |
1.25 |
2.62 |
3.50 |
3.00 |
2.62 |
.62 |
028156 |
7/8 |
11/16-3/4 |
9.25 |
1.75 |
1.63 |
.94 |
1.50 |
3.25 |
4.00 |
3.50 |
3.13 |
.80 |
028157 |
1 |
13/16-7/8 |
10.56 |
2.00 |
2.00 |
1.13 |
1.75 |
3.75 |
4.50 |
4.00 |
3.75 |
.88 |
028158 |
1-1/8 |
15/16-1 |
11.81 |
2.25 |
2.25 |
1.25 |
2.00 |
4.12 |
5.00 |
4.62 |
4.12 |
1.00 |
028159 |
1-1/4-1-3/8 |
1-1/16 - 1-1/8 |
13.19 |
2.50 |
2.50 |
1.50 |
2.25 |
4.75 |
5.50 |
5.00 |
4.75 |
1.13 |
028160 |
1-1/2 |
1-13/16 - 1-1/4 |
15.12 |
3.00 |
2.75 |
1.63 |
2.75 |
5.25 |
6.00 |
6.00 |
5.38 |
1.19 |

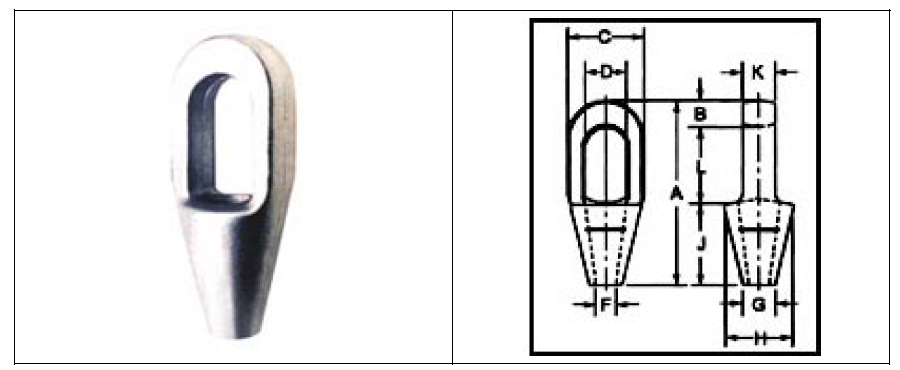

ITEM NO |
Rope Dia. |
Structrual Stand Dia. |
Dimensions (in) |
|||||||||
in |
in |
A |
B |
C |
D |
F |
G |
H |
J |
K |
L |
|
028201 |
1/4 |
- |
4.50 |
.50 |
1.50 |
.88 |
.38 |
.69 |
1.56 |
2.25 |
.50 |
1.75 |
028202 |
5/16-3/8 |
- |
4.88 |
.62 |
1.69 |
.97 |
.50 |
.81 |
1.69 |
2.25 |
.69 |
2.00 |
028203 |
7/16-1/2 |
- |
5.44 |
.69 |
2.00 |
1.16 |
.56 |
.94 |
1.88 |
2.50 |
.88 |
2.25 |
028204 |
9/16-5/8 |
1/2 |
6.31 |
.81 |
2.63 |
1.41 |
.69 |
1.13 |
2.38 |
3.00 |
1.00 |
2.50 |
028205 |
3/4 |
9/16-5/8 |
7.56 |
1.06 |
3.00 |
1.66 |
.81 |
1.25 |
2.75 |
3.56 |
1.25 |
3.00 |
028206 |
7/8 |
11/16-3/4 |
8.75 |
1.25 |
3.63 |
1.88 |
.94 |
1.50 |
3.25 |
4.00 |
1.50 |
3.50 |
028207 |
1 |
13/16-7/8 |
9.88 |
1.38 |
4.13 |
2.30 |
1.13 |
1.75 |
3.75 |
4.44 |
1.75 |
4.00 |
028208 |
1-1/8 |
15/16-1 |
11.00 |
1.50 |
4.50 |
2.56 |
1.25 |
2.00 |
4.13 |
5.00 |
2.00 |
4.50 |
028209 |
1-1/4-1-3/8 |
1-1/16 - 1-1/8 |
12.12 |
1.63 |
6.03 |
2.81 |
1.50 |
2.25 |
4.75 |
5.50 |
2.25 |
5.00 |
028210 |
1-1/2 |
1-13/16 - 1-1/4 |
13.94 |
1.94 |
5.33 |
3.19 |
1.63 |
2.75 |
5.25 |
6.00 |
2.50 |
6.00 |
